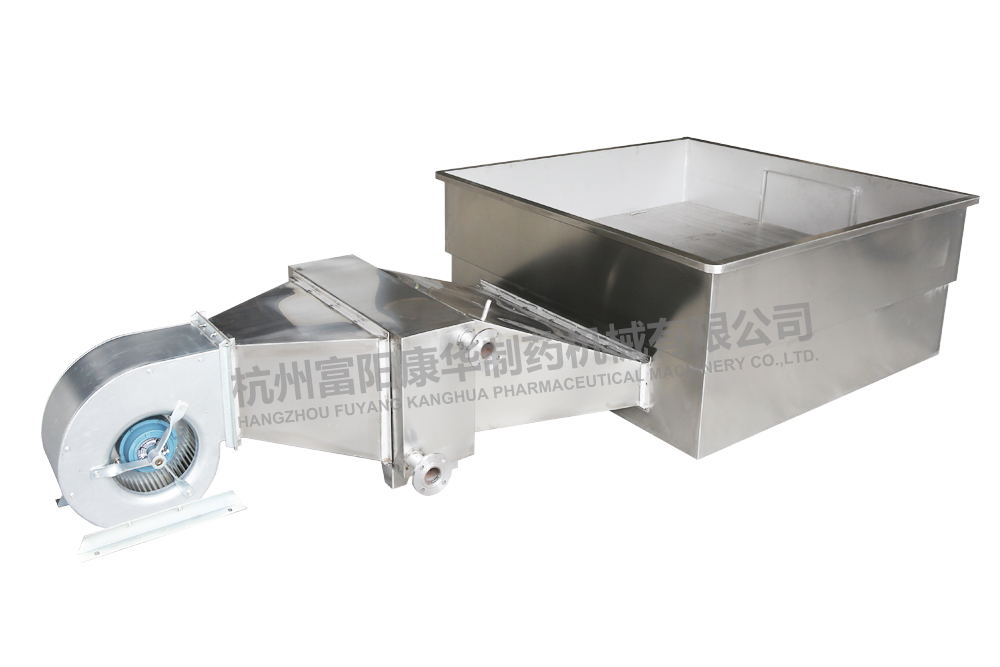

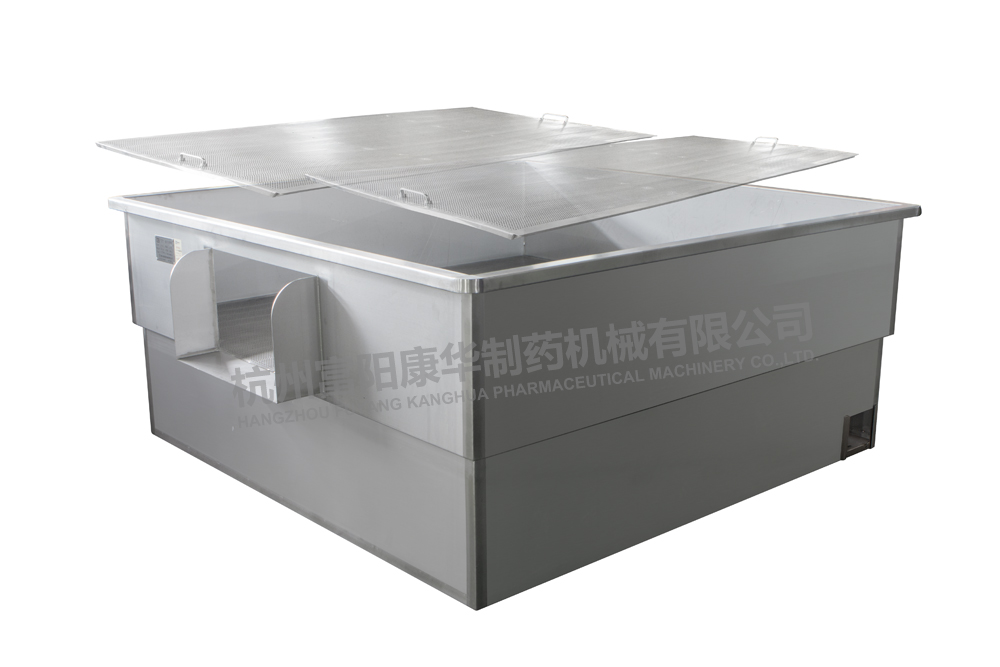

HX open type dryer

Product Video

Detail

Main uses:

This machine is suitable for drying raw materials such as roots, stems, and leaves, semi-finished products, finished products, aquatic products and subsidiary agricultural products.

Features:

Simple operation, good sanitary condition, easy cleaning and maintenance, wide range of application. Multiple heating types (fuel oil, gas, electrical heating, steam heating). It meets the requirement of GMP.

Main technical parameters:

Model	Capacity (kg/h)	Drying area (㎡)	Operating temperature (℃)	Power (kw)	Dimension (mm)	Weight (kg)	Energy consumption
HX-4	80-150	4	120	2.6	4600x2000x1500	280	Oil consumption 8.0 kg/h
HX-4	80-150	4	120	2.6	4600x2000x1500	280	Gas consumption (liquefied gas)2.0kg/h
HX-4	80-150	4	120	49.1	4500x2000x1030	580	Power consumption 48kw/h
HX-4	80-150	4	120	1.1	4500x2000x1200	478	Steam consumption (steam)80 kg/h
HX-4	80-150	4	120	2.2	4500x2000x1930	580	Coal consumption 15-20kg/h
