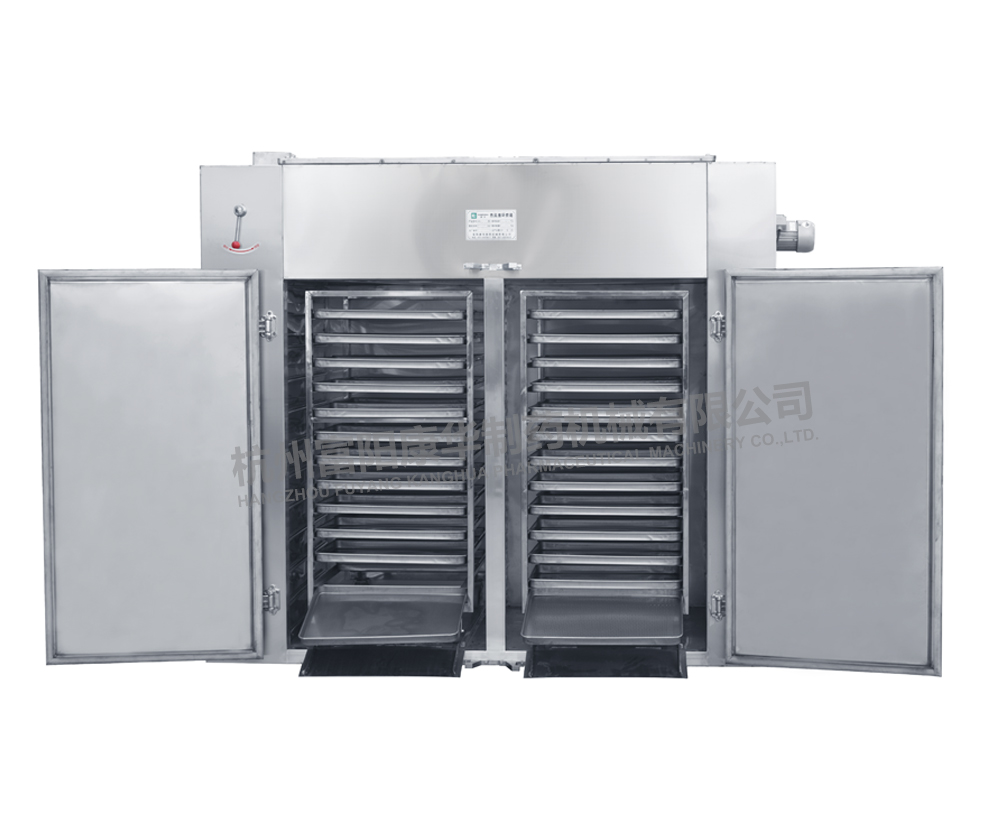

HX-II hot air circulating oven (two doors and vehicles)
Product Video
Detail
Main uses:
This machine is suitable for heating and dehumidifying materilas and products in pharmaceutical, chemical, food, light and heavy industries.
Features:
High heat transfer efficiency, energy saving, low noise, stable operation, automatic temperature control, and convenient maintenance. It meets the requirement of GMP.
Main technical parameters:
|
Model
|
Capacity (kg) |
Power of fan (kw) |
Steam consumption (kg/h) |
Heating power (kw) |
Radiator area (㎡) |
Volume of wind (m3/h) |
Amount of trays |
Amount of baker |
Dimension (mm) |
Weight (kg) |
|
HX-O |
30-80 |
0.45 |
10 |
14 |
10 |
3450 |
24 |
1 |
1430×1350×2100 |
600 |
|
HX-Ⅰ |
100-160 |
0.45 |
18 |
24 |
20 |
3450 |
48 |
2 |
2530×1350×2100 |
930 |
|
HX-Ⅱ |
160-350 |
0.9 |
36 |
48 |
40 |
6900 |
96 |
4 |
2530×2350×2100 |
1400 |
|
HX-Ⅲ |
350-550 |
1.35 |
54 |
72 |
80 |
10350 |
144 |
6 |
3530×3200×2200 |
1900 |
|
HX-Ⅳ |
550-700 |
1.8 |
72 |
96 |
96 |
13800 |
192 |
8 |
4460×2350×2300 |
2300 |
